FreeCAD
Last Updated
Key Takeaways
Generated from the text of customer reviews
FreeCAD is an open-source parametric 3D CAD application for engineering and technical design. It is used by engineers, designers, architects, and makers. Users appreciate its modeling capabilities, though some note that the attached-sketch edits can sometimes cause part geometry issues. Its recent updates include the release of FreeCAD 1.1.3 version with fixed repeated version-update warnings when saving files.
Our Verdict
FreeCAD focuses on parametric 3D design for technical modeling and engineering projects. It helps independent designers and engineering teams that need CAD without licensing fees. The platform’s zero-cost model makes it accessible, although users must account for their own setup and support requirements. We recommend it for small mechanical engineering teams to develop and revise prototype parts before fabrication.
FreeCAD Specifications
- Document Management
- Collaboration Tools
- Issue Tracking
- Project Planning and Scheduling
What Is FreeCAD?

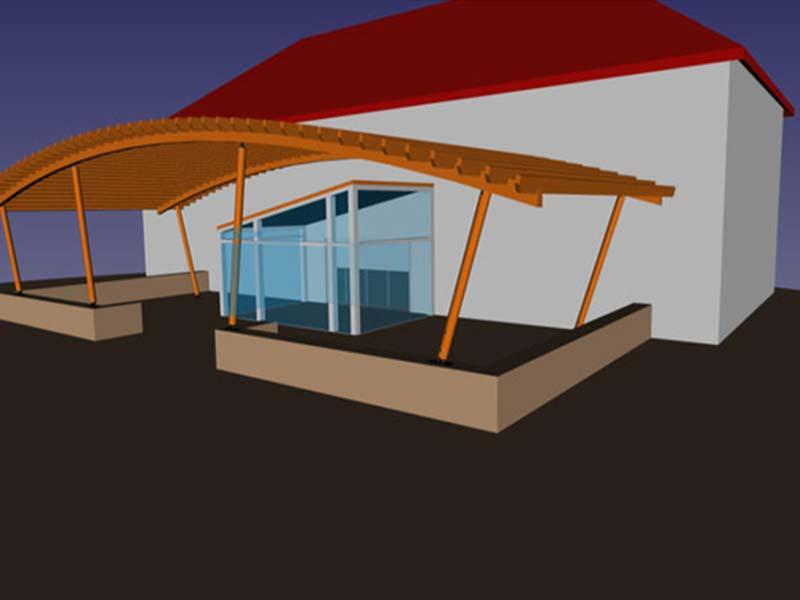

FreeCAD is a parametric 3D CAD application used for architecture design and technical modeling. The open-source platform provides several features, including the Sketcher workbench to create constraint-based 2D geometry to form the basis of 3D parts. Additionally, its Assembly workbench allows users to handle relationships between components. The software helps engineering teams who need CAD software without paying any licensing fees.
What Is FreeCAD Best For?
The software is best known for its parametric modeling, with its constraints-based 2D Sketcher serving as the starting point for many designs. It allows designers to create two-dimensional geometry by using a pre-built constraint solver. The platform lets users define relationships between sketch elements and control their dimensions before using the resulting geometry to create other objects. It helps mechanical designers, as any changes to constrained sketches can be carried forward to the dependent model elements rather than requiring the underlying geometry to be recreated manually.
How Much Does FreeCAD Cost?
Disclaimer: The pricing is subject to change.
FreeCAD Integrations
The platform integrates with multiple systems, such as:
- GitHub
- BRL-CAD
How Does FreeCAD Work?
Here's how you can get started with the platform upon installing it:
- Open FreeCAD and review the Start page to access recent files and available workbenches
- Select the workbench depending on the type of engineering task you are assigned to
- Create a new CAD document or open an existing project
- Use the 3D View to inspect and manipulate the geometry contained in the active document
- Manage model structure and construction history through the Tree View in the Model panel
- Select individual objects and adjust their available parameters through the Property View
- Switch between workbenches as the project moves from tasks such as constrained sketching to part modeling, assembly design, or technical drawing
- Review messages, warnings, and errors through the Report View when troubleshooting a project
Who Is FreeCAD For?
The platform is used by the following industries:
- Architecture
- Construction
- Design
- Automotive
- Manufacturing
- Engineering
FreeCAD Use Cases
Based on FreeCAD’s current capabilities, we have identified several scenarios where the software can be a practical fit for specific design teams and project requirements:
Mechanical Engineers Revising Parametric Part Designs
Mechanical engineers frequently have to revise dimensions after reviewing a specific prototype or design that tracks any errors and requires changes. In such cases, building the model again from scratch can result in excessive work and introduce inconsistencies. FreeCAD’s parametric modeling solves this issue by keeping design history and parameters connected. It allows engineers to return to earlier model stages and adjust the underlying dimensions.
Product Designers Developing Prototypes for Fabrication
Product designers can use the FreeCAD software when a concept needs to be moved from an initial 2D sketch towards a manufacturable 3D model. Early-stage projects require repeated changes to dimensions, component geometry, or material-related requirements to get the final product accurate. The system provides a modeling environment that lets designers develop geometry and prepare technical drawings from the resulting model.
Engineering Teams Evaluating Structural Designs
Engineering teams that work on components that require structural analysis can use the platform for projects where physical behavior needs to be assessed before any fabrication occurs. Such scenarios typically include preparing geometry, assigning material properties, defining loads, and generating a finite element mesh. The platform’s FEM workbench connects these stages with external solvers, such as CalculiX, for engineering design verification.
Robotics Engineers Testing Six-Axis Robot Movement
Robotics projects require engineers to check if a programmed robot can reach specific positions around a workpiece or not. Problems with reach, trajectory, or movement can become costly if they are discovered after the physical programming process. The system's Robot Workbench provides designers with a virtual environment for placing a six-axis robot that defines movement paths and simulates those trajectories.
Designers Working Across Different CAD File Formats
Engineering projects include models that are created in different CAD environments, especially when suppliers or project partners use separate design applications. In such scenarios, file compatibility can become a major issue when geometry needs to move between those systems without recreating the model. The software supports several common engineering and modeling formats to give designers a practical option for importing external geometry or exporting completed work for use elsewhere.
Is FreeCAD Right For You?
If you are an engineer or an independent designer who needs a parametric 3D CAD without recurring license costs, then FreeCAD might be the ideal solution for you. It includes various features, such as the Assembly workbench and robot simulation, that make the platform relevant for mechanical engineering and technical design.
In recent years, CAD platforms are moving towards adopting cloud collaboration, AI-assisted design, and browser-based development. FreeCAD platform, however, is a locally installed, open-source application, and it does not follow every cloud-first trend currently. Its recent releases instead show continued development around desktop CAD and extensibility.
Still unsure about the FreeCAD software? Contact us at (661) 384-7070 for further guidance.
FreeCAD Features
File Formats Frenzy
FreeCAD software allows users to import and export models and engineering data in different file formats. It includes STEP, IGES, OBJ, STL, DWG, DXF, SVG, IFC, OFF, and FCStd. The system lets engineering teams exchange models with other CAD and technical applications. The system also includes add-on workbenches that provide users with additional formats for specific project types.
Assembly Solutions
This functionality allows users to define three-dimensional limitations between components, gather separate parts, and animate the resulting mechanism. The platform’s add-on ecosystem stores community-related assembly workbenches. It provides mechanical designers with a way to monitor component relationships and movement within a digital assembly before any fabrication takes place.
Industrial Robot Trajectories
FreeCAD features the Robot Workbench tool to simulate six-axis industrial robots, such as Kuka models. It lets users place a robot with workpieces, create movement trajectories, and simulate robot motion. Trajectories can then be exported as Kuka KRL subroutines. Engineers can therefore examine reach and programmed movement around a modeled part before transferring the path to robot programming.
Finite Element Analysis
The platform’s FEM Workbench allows designers to analyze finite elements by combining model preparation, material assignment, meshing, solver control, and result visualization. It lets engineers define mechanical loads, thermal conditions, or electromagnetic constraints before running external solvers, such as CalculiX, Elmer, Mystran, and Z88. The software allows users to monitor results through visual tools.
Pros And Cons of FreeCAD
Pros
Reduces design errors when developing complex structures
Supports efficient workflows across varied engineering requirements
Saves time by working with various CAD file formats
Improves design precision and reduces rework
Helps identify structural issues before production
Cons
Snap and dimensioning functions can be unreliable
Third-party components may not import correctly
Mesh-to-solid conversion can sometimes fail
FreeCAD Reviews
Total 25 reviews
4
All reviews are from verified customers
Rating Distribution
5
Stars24%
4
Stars52%
3
Stars20%
2
Stars4%
1
Stars0%
Share your experience
Product, 1-10 employees
Less than a year
“Cumbersome”
Pros
I appreciate that it's free and, in theory, quite simple to use.
Cons
The snap function works poorly for me; dimensioning doesn't work, and errors pop up no matter what I try to do.
Rating Distribution
Ease of use
3
Value for money
10
Customer Support
3
Functionality
8
IT, 1-10 employees
More than a year
“Review”
Pros
Some of the advantages are that it supports the creation of 3D parametric components, which is crucial for designing complex objects and assemblies; it's accessible on various platforms; and it's designed to be modular and extensible.
Cons
Some drawbacks: there's a learning curve, especially for those new to parametric 3D modeling. The interface might not be as intuitive for beginners, and some users have experienced stability issues like occasional crashes. Additionally, certain workbenches in FreeCAD may not be as actively developed or feature-rich as others.
Rating Distribution
Ease of use
6
Value for money
10
Customer Support
5
Functionality
8
IT, 1-10 employees
More than a year
“Congratulations to the creators of FREECAD”
Pros
All the workshops are remarkably intuitive and user-friendly, making them easy to navigate and understand. The design and layout are so simple that even new users can quickly grasp how to use the tools and features effectively.
Cons
Some workbenches need improvement from the community.
Rating Distribution
Ease of use
10
Value for money
10
Customer Support
8
Functionality
8
Frequently Asked Questions
Does FreeCAD offer an API?
Yes, FreeCAD offers an API.
What language does FreeCAD support?
FreeCAD supports English, French, Spanish, Dutch, Italian, Turkish, and Japanese.
What other apps does FreeCAD integrate with?
FreeCAD integrates with BRL-CAD and GitHub.
Does FreeCAD have a mobile app?
No, FreeCAD does not have a mobile app; however, it is compatible with Windows and macOS.
What type of pricing plans does FreeCAD offer?
The FreeCAD pricing does not include any charges, as it is an open-source platform. Get a custom FreeCAD cost today.
Who are the typical users of FreeCAD?
FreeCAD is used in manufacturing, architecture, engineering, automotive, construction, and design industries.
What level of support does FreeCAD offer?
FreeCAD offers forums and community support.
